ultimaker factor 4

UltiMaker
Factor 4

Industrial-grade performance.
Reliable and repeatable results.

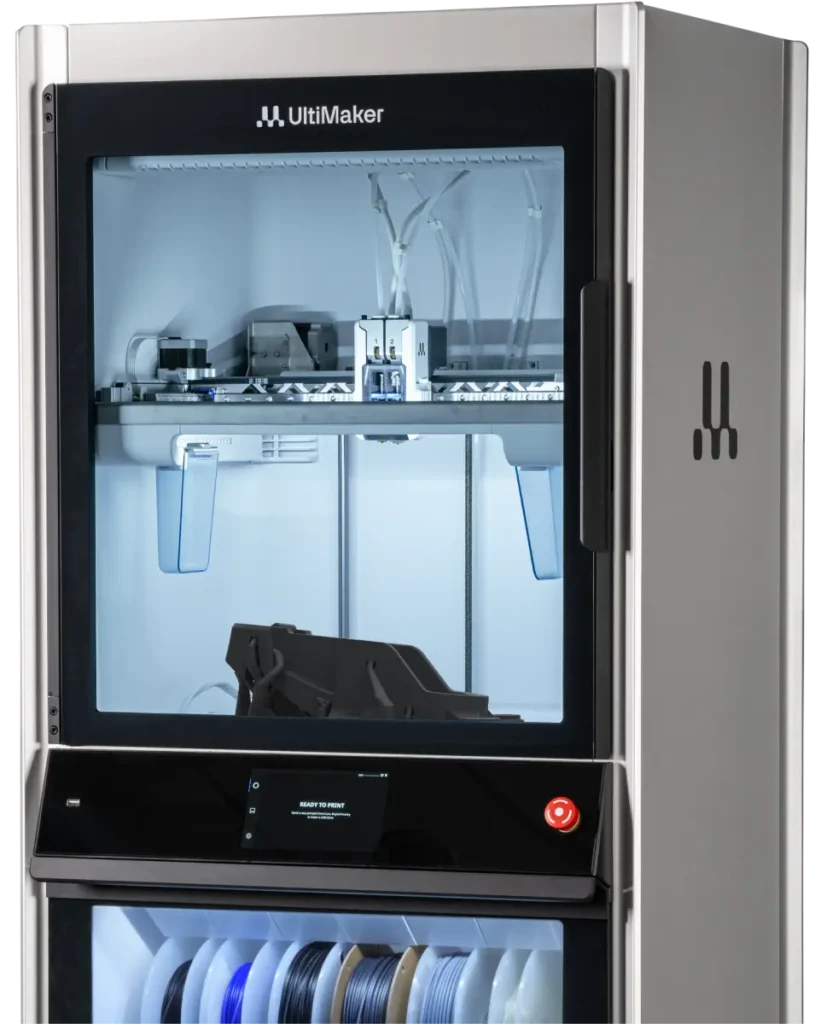

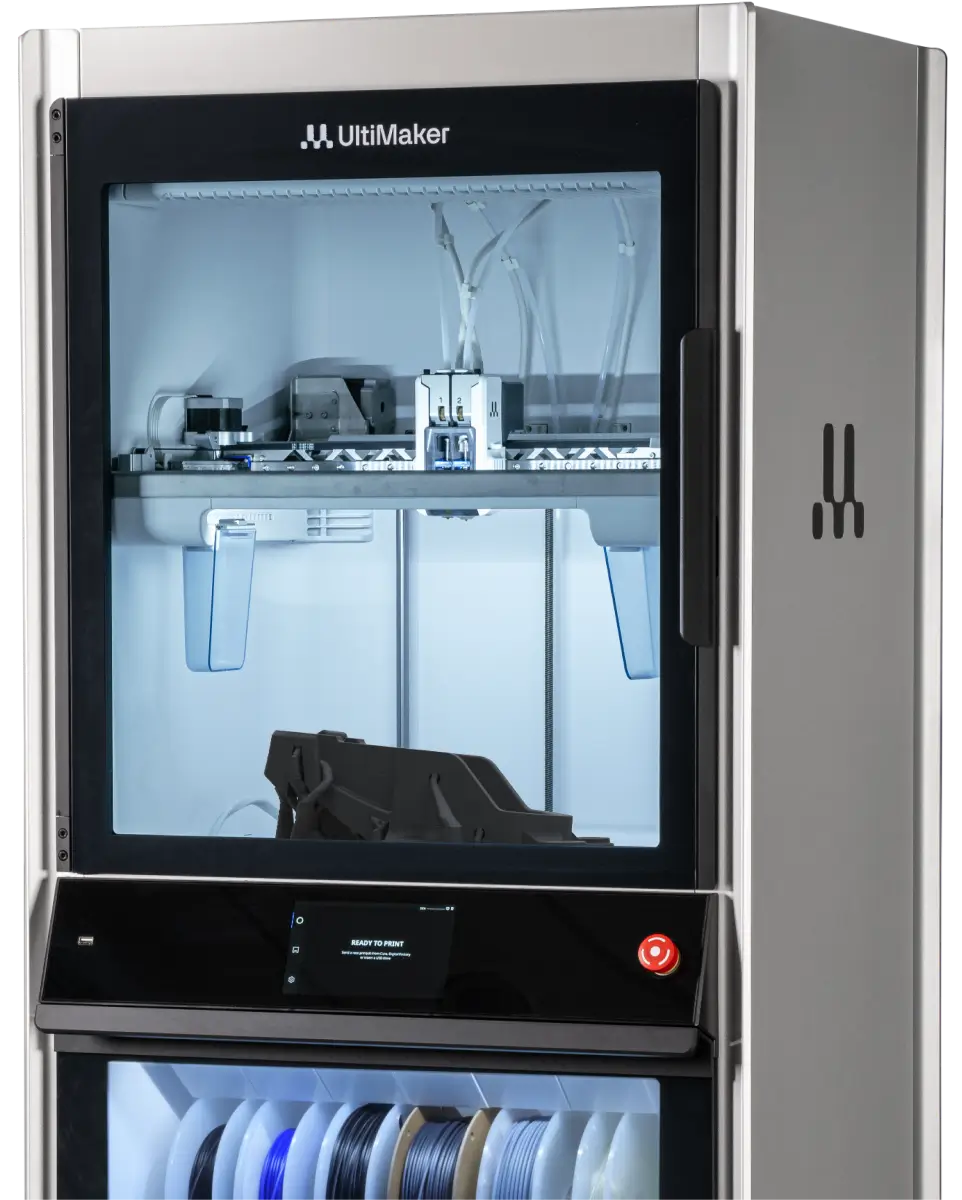

Introducing the UltiMaker Factor 4, our cutting-edge industrial 3D printer designed to enhance production efficiency, simplify workflows, and ensure uninterrupted operation. It accommodates engineering-grade materials, boasts direct dual extrusion, and offers onboard print process reporting along with a range of other advancements. This leads to unparalleled predictability and minimal variation.

Get Pricing

UltiMaker
Factor 4

Request a Quote

See what sets Factor 4 apart

Core benefits

Designed for the production line

Reliability, repeatability and validation

A future-proof investment

Achieve more with FDM 3D printing

Engineered for the Production Line

The seamless, robust enhancement your production workflows require.

The Factor 4 transforms manufacturing with its triple-insulated build chamber and direct dual extrusion. Its automated material handling system maintains filament quality, while the robust, temperature-controlled design ensures consistent output, even for intricate and demanding designs.

Heavy duty, heavy weight

Direct
Dual
Extrusion

effective dual 3D printing

Heavy duty, heavy weight

Direct
Dual
Extrusion

effective dual 3D printing

Reliability, Consistency & Validation.

Superior quality results. Every time. Anywhere.

Achieve the highest print accuracy of any UltiMaker printer, even at high resolution on complex design features. This guarantees a dimensional accuracy of ±0.2 mm + ±0.2% of the feature’s nominal length across the entire build plate and multiple printers.*

Hassle-free 3D printing

95%

print completion success rate.

*print success rate tested using UltiMaker PLA,
Tough PLA, PETG, PET CF, and PPS CF.

Achieve more with FDM 3D Printing

Direct drive extrusion for handling flexible materials.

The Factor 4 excels at quickly transitioning from 3D printing highly flexible materials to durable composites like UltiMaker PPS CF. Its H-bridge gantry and direct drive head enable fast dualmaterial printing.

High-temperature capabilities up to:

340°C

with the new UltiMaker HT Core.

Reliable Quality.
Every time. Anywhere.

Success with every 3D print.

Factor 4 facilitates the additive production and deployment of structurally verified parts across multiple locations. With less than 10% variance in extrusion rate and mechanical properties from batch to batch and part to part, it combines the H-bridge gantry, closed-loop feed control, and uniformly controlled build plate temperatures, ensuring a maximum variation of 2°C across the X and Y axes.

Actively temperature controlled build volume up to:

70 °C,

heated bed up to:

120 °C

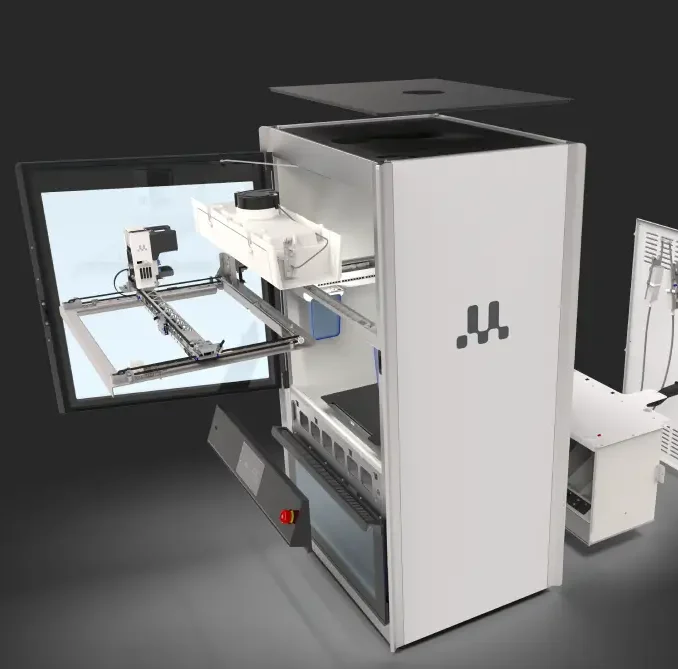

A Future-Proof Investment.

Versatility and quality that lead to a quick ROI

Regular updates ensure continuous improvement of your Factor 4 over time, extending far beyond the initial 12 to 18 months needed for ROI. The printer’s modular design allows our worldwide support team to quickly replace components, minimizing downtime.

New printer. Same UltiMaker

DNA

Compatible with Cura, Digital Factory and more.

Built on UltiMaker’s 13-year legacy, dedicated to innovation, accessibility, and openness

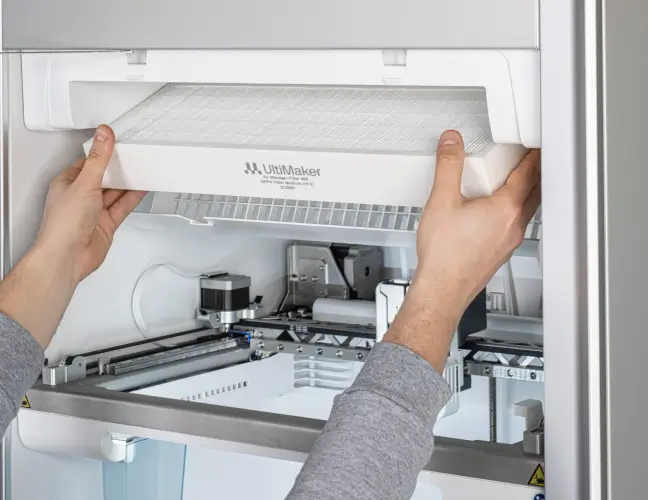

Integrated HEPA filter

Independently tested to eliminate up to 95% of ultrafine particles for enhanced peace of
mind regarding air quality. Additionally, the fully enclosed build chamber enhances print quality.

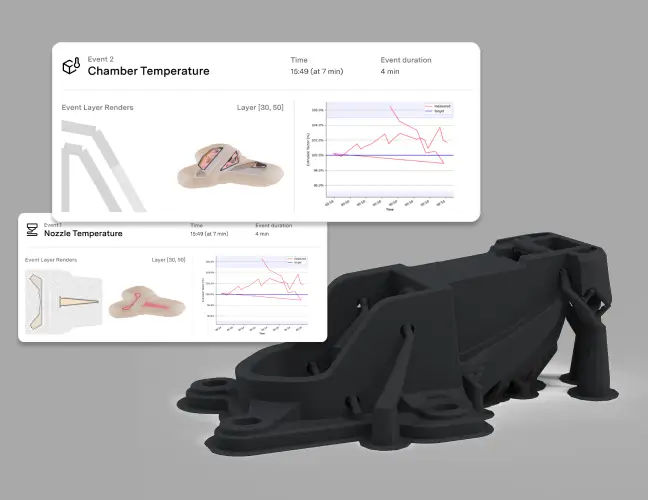

Onboard structural integrity validation

Following each print job, receive a comprehensive report detailing deviations in extrusion
parameters from nominal values, their locations within the 3D model, and their severity

Automated material handling with low humidity storage

Automatic pre-loading and spool switching (up to 6) with RH < 15% on any external conditions.

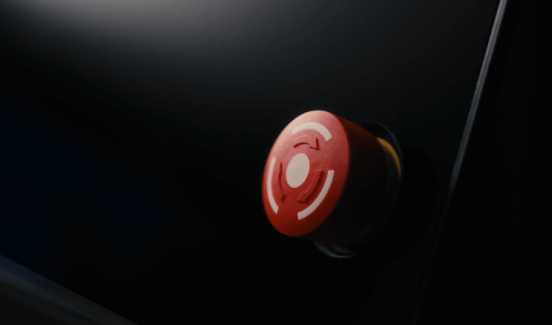

Emergency stop button

A conspicuous red STOP button ensures easy and safe operation should there be a need to immediately halt printing.

7-inch capacitive touchscreen

Mounted higher to give a better view of the first layers when remote monitoring. Monitor your print in high resolution remotely via UltiMaker Digital Factory.

H-bridge Gantry

H-bridge gantry and direct drive head enable rapid dual material printing. Factor 4 is capable of reaching up to 340°C on its print cores, 70 °C on the print chamber and 120 °C on its heated bed.

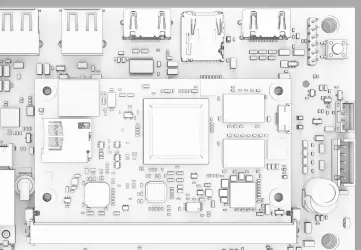

Always up to date.

With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.

Featured accessories and materials

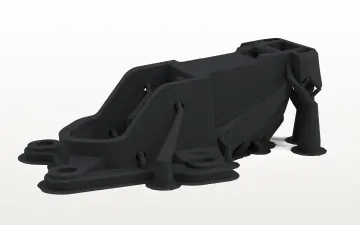

UltiMaker PPS Carbon Fiber

The new UltiMaker PPS CF enables the replacement of less-demanding complex steel parts and manufacturing aids with excellent surface finish using this high-temperature composite.

UltiMaker HT print core

Factor 4 elevates temperatures up to 340 °C with the HT print core, empowering confident 3D printing of durable, high-temperature-resistant materials.

Factor 4 Printer station

Custom-designed for Factor 4, featuring anti-tilt architecture and stability, along with locking mechanisms to securely attach the 3D printer to the cabinet.

Request a quote for Factor 4

Our team can help you design the right package for your needs, provide business pricing or financing options, help with receiving a purchase order or preferred vendor processes, and more.

[New] UltiMaker PPS Carbon Fiber

Factor 4 transforms manufacturing with its triple-insulated build chamber and direct dual extrusion. An automated material handling system maintains filament quality, while its robust, temperature-controlled design ensures consistent output, even for intricate and demanding designs

Learn More

Innovation powered by material diversity

Factor 4 offers a diverse selection of high-performance, certified materials, expanding the possibilities for a wide array of new 3D printing applications.

Learn More

Application and material-matching print cores

UltiMaker print cores feature a quick-swap design and EEPROM chip, seamlessly recognized by Cura. They can be swiftly interchanged without tools to suit various print job needs, boosting efficiency and minimizing downtime. Factor 4 is fully compatible with all UltiMaker print cores: AA, BB, CC, DD, and HT.

Learn More
